Recipes & scrub sets

Where a source says how to reach a device, a recipe says what to fetch once connected. And before any capture is stored, a scrub set cleans it — stripping the volatile lines that would create false diffs and masking the secrets that should not land in a snapshot.

Two switches — one on the scrub set, one on the recipe — can deliberately let a real secret through. They are the most consequential settings on this page, so they get their own sections below, and a summary of exactly when a plaintext secret reaches storage at the end.

A recipe has a kind that matches the transport family it runs on, an optional netmiko driver, a link to a scrub set, and a switch for keeping an unmasked copy of every capture. Recipes live under Configuration Tracker → Settings → Recipes.

Kind	Runs on	What it carries
cli	ssh, telnet	An ordered list of commands (e.g. show running-config). Each step is one command; the output is captured in order.
http	http, https	Exactly one request: a method, a path, static headers and an optional body_template.
file	scp, sftp	One remote_path — the file to pull off the device (up to 512 characters).

• CLI recipes are the common case. The netmiko driver on the recipe (a device type like cisco_ios, arista_eos, juniper_junos) drives the terminal session. It is a CLI-only property — an HTTP or file recipe never carries one. Pick it from the searchable, vendor-grouped picker, which is served live from the netmiko drivers actually installed in this build, and a value netmiko does not know is refused when you save rather than failing cryptically at collect time. Leave it blank and the driver falls through to its napalm-platform map, and finally to cisco_ios.
• HTTP recipes are the open door: because the request is yours — path, headers, body — a custom recipe can fetch essentially any file or endpoint a device’s API exposes, not just a fixed command. Headers and body may reference vault fields with {{cred.*}} placeholders; in the path, only {{cred.username}} is allowed, because a secret in a URL leaks into server and proxy logs. A placeholder naming a field the credential does not carry fails the collection instead of hitting the device with a blank secret.
• File recipes carry just the remote path an SCP/SFTP source fetches.

A recipe can trim the capture before it even reaches the scrub set — skipping a fixed number of lines from the top or the bottom, or keeping/rejecting lines by regex. This is handy for lopping off a command echo or a trailing prompt that would otherwise show up as noise. (For content-based cleanup — masking secrets, dropping timestamps — use a scrub set, below.)

Trim is authored per step (the form offers skip top / skip bottom on each CLI command, and one block for an HTTP response), but at collection time every step’s directives are merged into a single pass over the whole capture: the largest skip counts win and the keep/reject patterns are unioned. For the single-command and single-response recipes that make up almost every real catalog that is exactly equivalent; on a multi-command recipe, do not expect a skip you set on step 2 to apply to step 2 alone.

The keep/reject regex lists are carried by the API and by seeded or cloned recipes, but the form only exposes the skip counts — a recipe you clone keeps whatever patterns it already had.

A recipe can archive a second copy of every capture — the device output exactly as returned, before trim and scrub. The normal body stays masked exactly as it always was; this is an additional archive, not a replacement.

• Off by default, set per recipe (Keep an unmasked copy of every capture), and it applies to every device using that recipe.
• The copy is stored encrypted (Fernet) in the snapshot’s raw_body.
• Reading it — on screen or as a download — needs the Reveal raw config permission (ncm_tracked_configs.reveal_raw), a separate action on the Tracked Configs section that is not implied by view. Every access is written to the activity log before the copy is decrypted, so an attempt that reaches the ciphertext and then fails is recorded just like a successful one.
• A capture past the text store threshold is tracked by checksum alone and gets no second copy — the storage that threshold saves must not come back through the encrypted column.
• A preview archives nothing (it stores nothing at all); Collect now archives exactly what the schedule would.
• The switch is read from the current recipe at ingest, not from the job that was dispatched. Turn it off while a collection is in flight and that result lands without an unmasked copy.
• Cloning a recipe carries the switch — a copy that quietly stopped archiving would look identical and behave differently.

Taranac seeds a running-config recipe for the major platforms, each already wired to a matching scrub set:

Recipe	Driver	Command
Cisco IOS — running-config	cisco_ios	show running-config
Cisco NX-OS — running-config	cisco_nxos	show running-config
Cisco ASA — running-config	cisco_asa	show running-config
Cisco IOS-XR — running-config	cisco_xr	show running-config
Arista EOS — running-config	arista_eos	show running-config
Juniper Junos — configuration	juniper_junos	show configuration | no-more
Huawei VRP — running-config	huawei	display current-configuration
FortiGate FortiOS — full-configuration	fortinet	show full-configuration
MikroTik RouterOS — export	mikrotik_routeros	/export terse
Aruba AOS-CX — running-config	aruba_aoscx	show running-config
Dell OS10 — running-configuration	dell_os10	show running-configuration
Extreme EXOS — configuration	extreme_exos	show configuration

A generic HTTP GET starter recipe ships too, as a template for API-driven platforms. Seeded recipes are marked System, but that is a provenance badge, not a write-lock: they are fully editable, cloneable and deletable, and both your edits and your deletes survive a restart or an update — a built-in you delete is not re-created. The usual pattern is to clone a system recipe and tweak the copy. New built-ins introduced by a later release still arrive on upgrade.

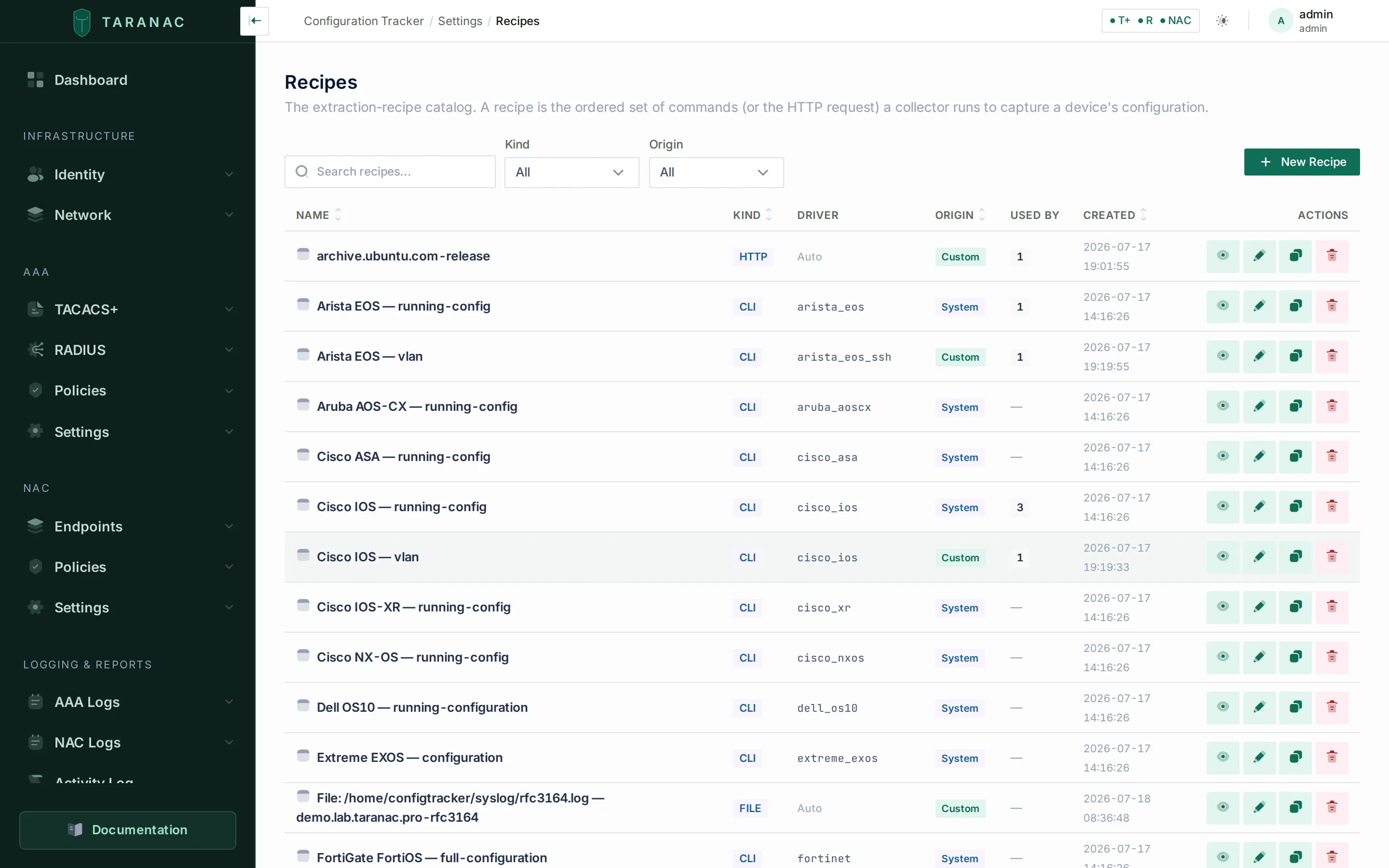

The recipe catalog: CLI, HTTP and FILE kinds, each with its netmiko driver and a System/Custom origin.

A scrub set is an ordered list of rules applied to a capture inside the collector, before the snapshot is persisted. It does two jobs:

• Strip volatile lines — timestamps, uptime counters, “current configuration” save headers: the lines that change every capture and would otherwise make every diff noisy and every config look drifted.
• Mask secrets — replace password/community/key values with a stable placeholder (••••••••) while keeping the line’s structure, so a snapshot is safe to store, diff and share.

Scrub sets live under Configuration Tracker → Settings → Scrub Sets, and attach to a recipe (not to a tracked config), so every config using that recipe is cleaned the same way. You can create or edit one without leaving the recipe form — the scrub-set picker has its own + New and edit actions, and saving there saves only the set.

Each rule has a stage, a regex pattern, and (for masking) an optional replacement. Rules apply in order, and per line the strongest action wins (drop → mask → keep):

Stage	Effect
drop_volatile	Delete the whole matching line (timestamps, counters, save headers).
mask_secret	Replace the secret value in the line with the placeholder; keep the line’s shape. Capture the value in a named secret group (else group 1, else the whole match) so only the value — not the keyword — is masked.
keep	Mark a benign line as safe, so the automatic masking (below) leaves it alone.

Two guards run on every write — create, update and clone — because a broken or over-broad rule is a leak, not a typo:

• every pattern must compile as a regex, and every order must be unique in the set;
• a keep rule must target a named benign line. A catch-all (.*, ^.*$, (.+) and friends) is rejected, and so is a keep whose pattern names a strong secret keyword (secret, password, pre-shared-key, private-key, md5-key, …) — either would wave a secret-bearing line straight into storage. The bare word key is deliberately allowed, because key chain <name> is benign.

Underneath your rules, Taranac masks secrets automatically: any line carrying a secret-bearing keyword (password, passwd, secret, key, community, pre-shared-key) in value position is masked even if no rule matched it, and PEM private-key blocks are masked as a block (a truncated block — BEGIN with no END — is masked to the end of the document rather than leaked). Public certificate material is left alone, so certificate rotations still diff.

This is a safety net, not a scrubber: on its own it over-masks benign lines that merely contain a secret word (key chain MYCHAIN, a description, a banner). That is what the seeded per-vendor keep rules are for.

A scrub set carries a Mask secrets automatically switch, on by default.

Standalone collectors must be updated in the same maintenance window as the core: this switch changed the collector contract, and a collector on the previous version stops collecting entirely — every tracked config it serves — rather than storing a snapshot masked differently from what the core expects. It idles, and resumes on its own once updated.

Every seeded vendor recipe ships with a matching “<Vendor> — default scrub” set carrying that platform’s drop_volatile + mask_secret + keep rules, written against that vendor’s real config syntax — Cisco’s username/enable secret/snmp-server community/key-string forms, Junos’ quoted encrypted-password and authentication-key, Huawei’s %^%#…%^%# ciphertext and irreversible-cipher, FortiOS’ set … ENC blobs and inline private-key bodies, AOS-CX’s ciphertext/plaintext markers, EXOS’ encrypted / shared-secret and MikroTik’s password= / secret= / key= pairs. Like recipes, they are System-marked but editable, cloneable and deletable, and your changes persist across updates.

Deleting a scrub set that a recipe still points at is refused (the error names the recipes): silently detaching them would drop those recipes to bare automatic masking without anyone deciding to. Deleting a recipe that tracked configs use is allowed — they are detached and will need a recipe again.

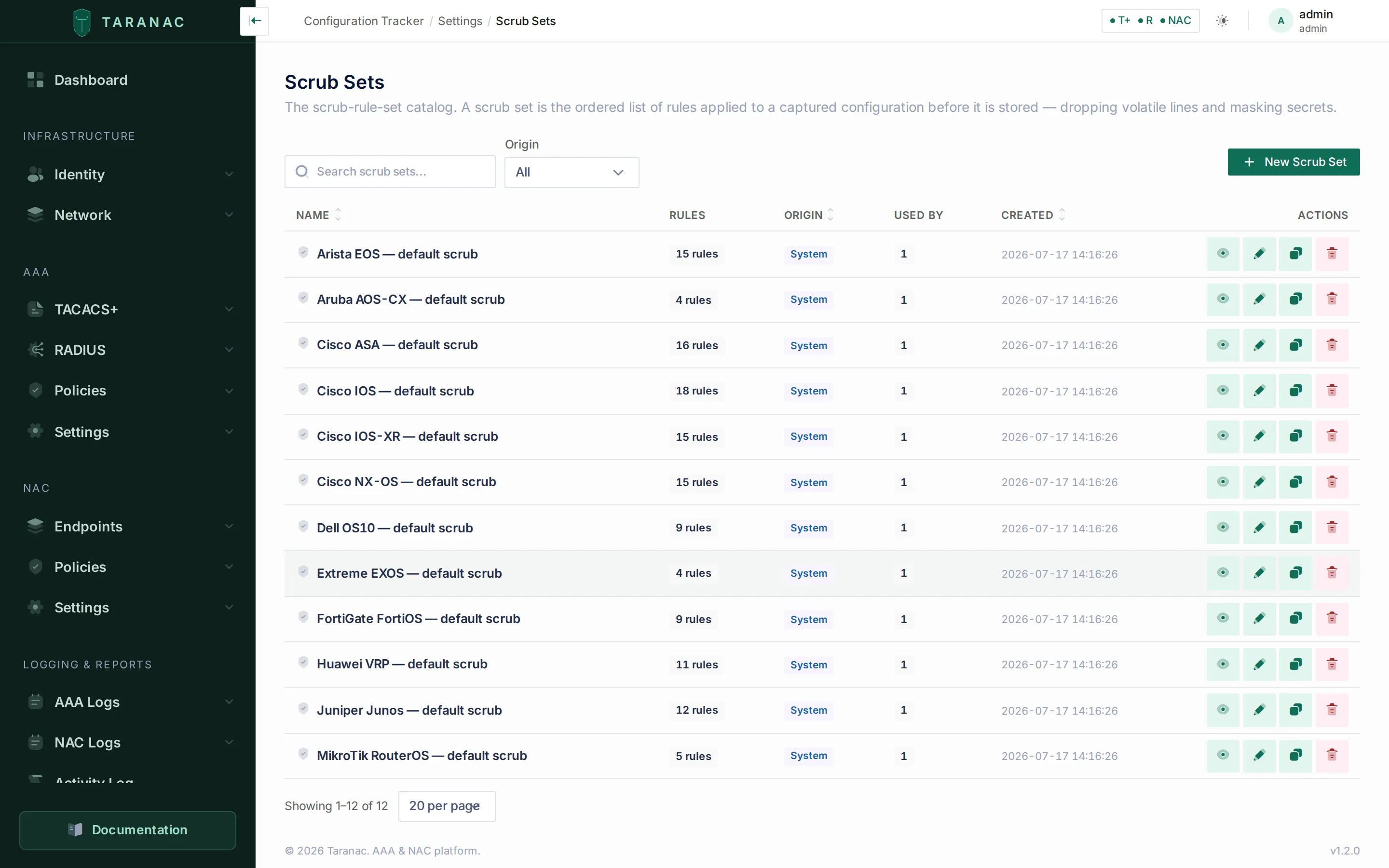

Per-vendor default scrub sets, each with its rule count — applied before a capture is stored.

There are exactly two ways, both deliberate, and they differ in who can then read the secret.

1 — The stored body itself is unmasked. All of these must hold:

1. the tracked config’s recipe points at a scrub set, and
2. that set has Mask secrets automatically off, and
3. the set’s own rules do not mask that value (with no rules, nothing is masked).

The secret is then in the ordinary snapshot body — visible to anyone who can view tracked configs, and to diffs, notifications and exports.

2 — The separate encrypted copy. All of these must hold:

1. the recipe has Keep an unmasked copy of every capture on when the result is ingested, and
2. the capture is text and under the store threshold (an oversized capture gets no copy), and
3. the result actually carried it — for a standalone collector, that means it was delivered without going through the disk queue.

The copy is encrypted at rest, the normal body stays masked, and reading it needs the Reveal raw config permission plus an audit record per access.

Everything else stays masked. A recipe with no scrub set is masked. A preview stores nothing at all. And when a standalone collector reports a capture, the core re-scrubs it with that tracked config’s current rules before storing, so the core’s copy — and the hash the version history is built on — is authoritative.

Three system settings bound what a collector will buffer, download and store: ncm.text_store_max_bytes (past it a text config is tracked by content hash only — the version is recorded, the body is not), ncm.text_buffer_max_bytes (the most captured text held in memory at once) and ncm.binary_max_bytes (the largest binary artefact a collector will read). Their defaults, ranges and full descriptions are in Settings reference → keys with no dedicated control.

A capture that exceeds a limit fails immediately and names the setting to raise — it is not treated as a transient network error, so it no longer burns the retry budget on three extra device logins that would fetch the same oversized payload again.

Track a new vendor. Clone the closest seeded recipe, set its netmiko driver and command, then clone a scrub set and adjust the volatile-line and secret patterns for that platform’s config syntax.

Kill noisy diffs. If a device stamps a timestamp or a byte-count into its config, add a drop_volatile rule matching that line to the scrub set — the next capture that differs only by that line will de-dup instead of cutting a spurious version.

Fetch a non-standard file over the API. Write an HTTP recipe with the exact method/path for the export endpoint, put the auth token in a header via {{cred.token}}, and point an https source at it.

Store one platform’s config exactly as the device returns it. Give that platform its own recipe and its own scrub set, clear Mask secrets automatically on the set, and leave every other recipe on its own set. The switch is per set, so the blast radius is whatever recipes point at it — check the Used by column before you flip it.

Let a named few read real passwords, without opening the config to everyone. Turn on Keep an unmasked copy of every capture on the recipe and grant Reveal raw config to those people only. The body everyone else sees stays masked, and every reveal is audited.

Job	Tool
Choose which commands / request / file to collect	Recipe
Pick the terminal driver for a CLI device	Recipe (netmiko driver)
Remove a command echo or trailing prompt	Recipe (trim)
Keep a second, encrypted unmasked copy of each capture	Recipe (Keep an unmasked copy)
Strip timestamps/counters that appear inside the config	Scrub set (drop_volatile)
Mask a password/community/key value	Scrub set (mask_secret)
Rescue a benign line the automatic masking would hit	Scrub set (keep)
Store the config with its real secrets in the ordinary body	Scrub set (Mask secrets automatically off)

Recipe fields:

Field	Notes
Name	Required, unique, ≤128 characters.
Kind	cli · http · file.
Steps	CLI: ordered {command} list. HTTP: exactly one {method, path, headers, body_template}. File: one {remote_path} (≤512 chars). Never empty.
Trim	Per-step {skip_top, skip_bottom, keep[], reject[]}; merged into one pass at collect time.
Netmiko driver	CLI only, optional; validated against the installed netmiko drivers. Blank → napalm map, then cisco_ios.
Scrub set	Optional; blank means automatic masking only, with no rules.
Keep an unmasked copy	Off by default. Stores a second, encrypted copy of each capture; read requires ncm_tracked_configs.reveal_raw and is audited.
Origin	System (seeded) or Custom — provenance only. System recipes are editable, cloneable and deletable.

Scrub-set fields:

Field	Notes
Name	Required, unique, ≤128 characters.
Mask secrets automatically	On by default. Off = the set’s rules are the whole policy; with no rules the capture is stored verbatim. Audited, flagged in the list, carried by a clone.
Rules	Ordered (unique order); each has a stage (drop_volatile/mask_secret/keep), a regex pattern, and an optional replacement (blank → ••••••••). May be empty.
Origin	System (seeded) or Custom — provenance only. System sets are editable, cloneable and deletable.

Permissions: recipes and scrub sets are their own RBAC sections (ncm_recipes, ncm_scrub_sets) — authoring the collection catalog is a different capability from defining sources. Reading an unmasked copy is ncm_tracked_configs.reveal_raw.
